3rd world novelty: Isogate type
|
Insulation against cold & fire protection - all in one!
Fire protection doors with the additional function for insualtion against cold.
modifiable for different specifications
applicable for:
- sliding door
- revolving door
- conveyor technic
Technical statements
1. Fire protection
|
|
ETK-curve
Depending on the duration of the load, the design of the insulating, heat consuming and sealing buildig parts can be modified.
Minutes
Classification according to DIN
Classification according to DIN/EN 13501-2
|
2. Insulation
|
|
|
|
|
|
Freeze storage
|
|
Cold storage
|
|
Service room
|
3. Environment & recommended surface
4. Function
| Opening: | manual or motorized | | access authorisation: | PZ-closer, card reader | | average opening-speed: | up to 0,5 m/sec. for sliding doors | | Safety: | CE-sliding mark, emergency opening function |
sliding door
Customer benefits: - tested according to DIN/EN
- outstanding characteristics in view of insulation by using state-of-the-art insulation materials
- low door weights
- easy to operate
- design according to veterenarian demands
Solutions
Min.- and maximum dimensions of the clear opening in mm
T30/T90 sliding door
|
Design: - stainless steel drive with plastic rollers
- element construction
- beared ground guiding rollers
- pluggable hollow chamber sealing
- opening lever
- surface in stainless steel / RAL / galvanised
|
|
Options / functions: - Closure with PZ (profilcylinder), card reader
- Panic function
- elecromotorized drive system
- bedplate
- wearingfree and self regulating heating system (only for freeze storage)
|
Installation versions - wallquality
|
|
|
|
|
|
|
|
with one-sided insulation
|
|
with two-sided insulation
|
|
in paneel walls
|
|
Legend
|
Special design with reference to the EI 30 / EI 90-tests: - double-leafed sliding door
- liftable roller shutter with vertical closing direction
revolving door
Options / funcktions: - Closure with PZ (profilcylinder), card reader
- Panic function
- elecromotorized drive system
- bedplate
- wearingfree and self regulating heating system (only for freeze storage)
Solutions
Min.- und maximum dimensions of the clear opening in mm
T30/T90 revolving door
|
Design: - surface in stainless steel / RAL
- increasing door rebound straps
- lock with panic function
- pluggable hollow chamber sealing
- automatic door closing system
- wearingfree and self regulating heating system (only for freeze storage)
|
|
Options / functions: - limit switch
- closure with profil cylinder-closing
- bedplate
|
Installation versions - wall quality
|
|
|
|
|
|
|
|
with one-sided insulation
|
|
with two-sided insulation
|
|
Paneel walls
|
|
dimensionof the wall = clear dimension
|
Special design
with reference to the EI 30 / EI 90- tests:
- double leafed revolving door

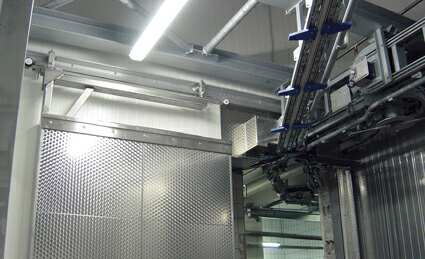

Special design of the sliding and liftable roller shutters for conveyor technic
Examples for the sealilng of a hanging conveyor systems in cold storages:
Function
|
Fire protection control unit "RZ8" type with official approval Z-6.5-1872 for revolving and sliding doors
- power supply unit
- 24V DC 0,9A, casing IP 65
- pictogram, optical and accustic display
- evaluation of the fire alarm signal, smoke switch
|
|
|
|
|
|
|
|
Fire protection control unit "RZ3" type
with official approval Z-6.5-1484 for conveyor closures
- integrated 24V DC 1,5A energy supply, buffered by accumulators
- pictogram
- evaluation of the fire alarm signal
- Optional motor control Closing proces in case of release
the closing weight devices are speed controlled
|
|
|
|
|
|
|
Frequence guided control unit TS 02.2 to drive sliding and liftable roller shutters:
Design:
- Frequencd guided control unit
- threephase motor
- controls
- safety switch strip
- transmitter to record the drive way of the door system
Options:
- pull switch
- radar / motion detector
- remote control
Advantages:
- Variable speed control
- exact position of the door system
- reliable processing of the signals provided by the close edge safeguard
- connection to 230 Volt
- usable at -30°C
|
|
|
|
|
|
|
Installation versions - wall quality
|
