Stainless steel fire protection doors - hygiene

customer benefits

fire protection doors for the food industry

... e.g. butcher´s shops, cheese dairy, creameries, breweries, backeries

... and also for the pharmaindustry and clean rooms

EI 30 revolving doors testes according to DIN 4102
EI 30 sliding doors tested according to DIN EN 1634-1
completely made of stainless steel
a design which is conform to veterenary demands
tightly welded door leaves

revolving door

Standard configuration:

stainless steel surface
stainless steel hinge plate
overhead door closer mechanism

Options:

smoke tight design
glas inset
limit switch
E-opener
hold open device

Technical data

Data for a standard revolving door with/without window:

T30-1 and T90-1 / max. LB x LH = 1250 x 2500 mm (clear opening)
T30-2 and T90-2 / min. LB x LH = 1375 x 1750 mm (clear opening)
T30-2 and T90-2 / max. LB x LH = 2500 x 2500 mm (clear opening)
tested according to DIN 4102

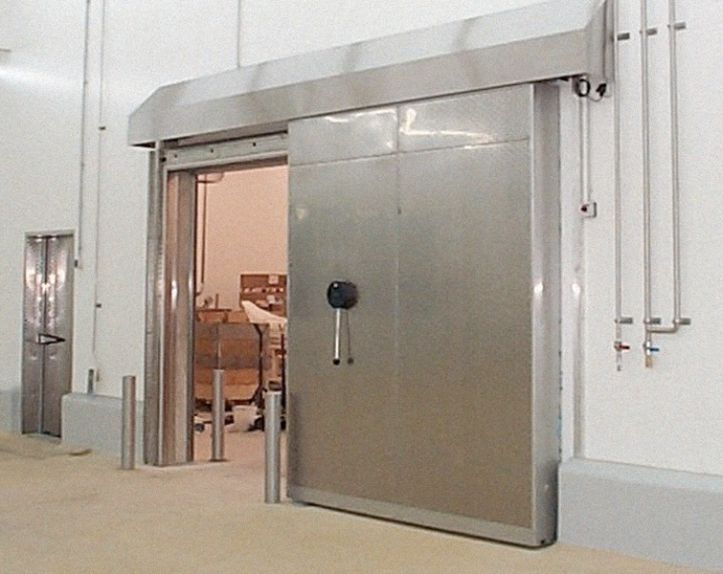

sliding door

Configuration:

stainless steel drive with synthetic rollers
ball beard guiding rollers
handrail outside / shell shaped bar inside
automatic closing process due to closing weights

Options:

closing with PZ (profil cylinder)
limit switch
elektromotorized drive system

Technical data

Data of the sliding door:

T30 and T90 Minimal LB x LH = 1000 x 2000 mm (clear opening)
T30 and T90 Maximal LB x LH = 3000 x 3500 mm (clear opening)
tested according to DIN 4102 and EN 1634-1:2001
installation in brick work and concrete walls
