EI 30 sliding door tested according to DIN EN 1634-1
adequate for F90 panels of various manufacturers
no additional steel construction is necessary
easy installation due to a clamp construction
various designs of the surface are selectable
also suppliable with demands concerning hygienie (conform to veterenary demands)
revolving door
coated design
stainless steel design
Configuration:
overhaed closer with Scherengestänge stainless steel design syntetic latch key set clamp frame
Options:
surface in stainless steel, RAL, galvanized limit switches floor sealing E-opener hold open device
Technical data
Data of a standard revolving door:
Min. LB x LH = 550 x 1700 mm i.L. (clear opening) Max. LB x LH = 1000 x 2100 mm i.L. tested according to DIN 4102, T30 approval Z-6.12-1720 Installation in F90 panels d >= 100 mm

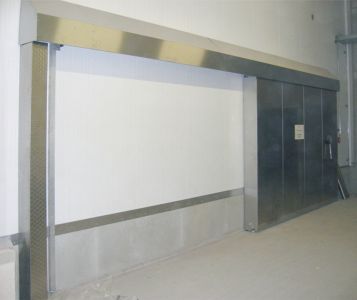

sliding door
stainless steel
coated design
Configuration:
stainless steel drive with plastic rollers ball beared bottom guiding rolls handle bar outside / shell handle inside automatic closing by closing weights
Options:
closure with mit PZ (Profil cylinder) limit switches elektromotoric drive unit
Technical data
Data of a sliding door:
Min. LB x LH = 1000 x 2000 mm i.L. (iclear opening) Max. LB x LH = 3000 x 3500 mm i.L. tested according to DIN 4102 and tested according to EN 1634-1:2001 installation in F90 panels d >= 100 mm
