| Fire resistance: |
Tested according to DIN EN 1366-7
|
| Class: |
E 120, EW 120, EI 30 bis EI 120 |
| Permanent function test: |
Tested according to DIN EN 14600
|
| Class: |
C5 |
Proof of usuability:
|
CE European Technical Approval ETA-11/0267
|
Appropriate for these conveyor systems
- Interrupted conveyor systems
- Separable conveyor systems
- Continuous belt conveyor
- Continuous roller conveyor
- Continuous chain conveyor
- Continuous travelling carriages
Customer benefits- Robust surface of the slider by sheet metal construction
- Tested according to the high class european test method DIN EN 1366-7
- Classification EI 30 - EI 120
- European Technical Approval ETA-11/0267 for dimensions up to 4.5 x 5.1 m
Design characteristics- Slider design
- Sandwich construction of the slider, cover sheet on all sides
- Segmented slider elements for transport
- Variable blocks for the fixed field for the continous conveyor systems

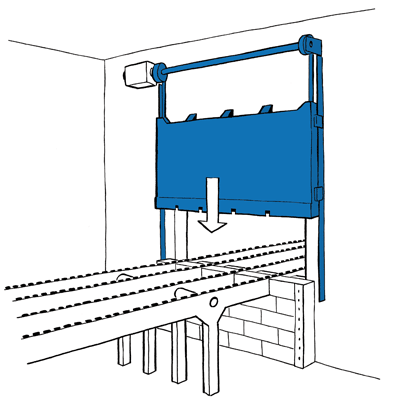

Closing direction
|
Two continuous chain conveyors
continuous roller conveyor running in a lift shaft
continuous belt conveyor with 400V emergency power system
|
